Intellinet 24 Port Gigabit Switch all POE Managed

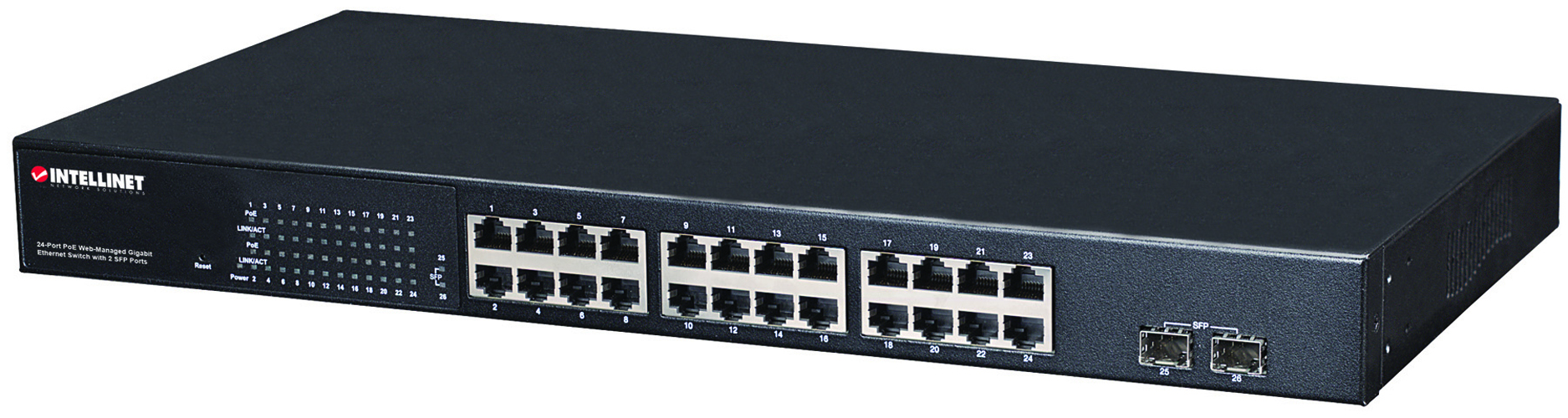

4-Port Gigabit Ethernet PoE/PoE+ Web-Managed Switch with 2 SFP Ports The Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (560559) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps. 10/100/1000 auto-sensing ports automatically detect optimal network speeds Power output up to 30 Watts per port All RJ45 ports with Auto-MDIX and NWay auto-negotiation support SNMP v1/v2c VLAN (tag-based and port-based) Port Aggregation/LACP (Trunking) Supports bandwidth control per port Port Mirroring Broadcast storm control with multicast packet rate settings Supports jumbo frames up to 9 kBytes Supports Rapid Spanning Tree/Spanning Tree protocol Store and forward switching architecture Full/half duplex operation QoS: port-based or DSCP Supports 16k MAC address entries Rackmount Packet Buffer Memory: 400kBytes Total Ports: 26 PoE Ports: 24 RJ45 802.3at/af (PoE and PoE+) SFP Ports: 2 Maximum PoE Power Consumption: 180W IEEE Protocols: 802.1d, 802.1p, 802.1q, 802.1w, 802.3ad, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x
